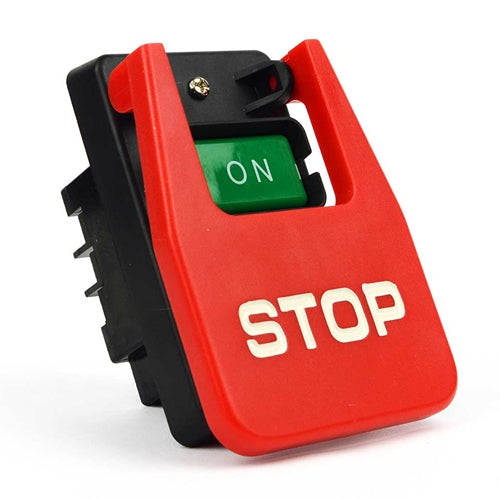

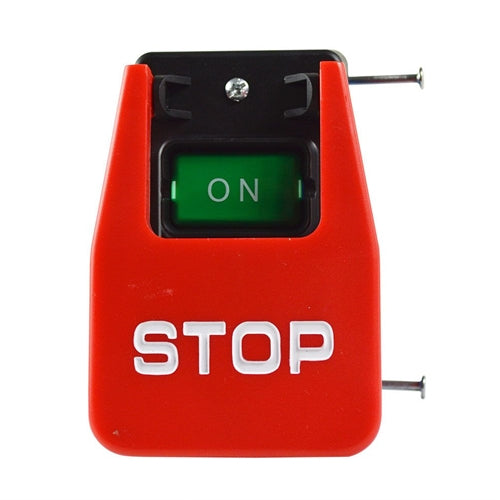

Replacement Table Saw Push Button Paddle Safety Panic Stop Switch

Replacement Table Saw Push Button Paddle Safety Power On Off Electrical Switch SW56

Panic Stop Switch. A recessed ON button protects against accidental starting and a large OFF paddle ensures fast shut off every time. This dual-Voltage, single-phase Paddle Switch is rated for 2 Horsepower motors up to 35-Amp, 3 Horsepower motors up to 20-Amp and for Three Phase Paddle Switch is rated for 5 Horsepower motors up to 20-Amp, and 10 Horsepower motors up to 15-Amp.

Note: Our switch fits 1-Gang Standard Switch/Outlet Wall Electrical Box – Both Metal & Plastic - Boxes must have 2” Minimum Inside Depth – Screw must be replaced with 6.32 x 3/4" Machine Screws.

Specifications:

Voltage / Amperage: 120 volts - 35 Amp - 2 HP - single phase
Voltage / Amperage: 230 volts - 20 Amp - 3 HP - single phase
