Plug In Auto Engine Code Problem Diagnostic Scan Scanner Reader Tool

  • Sale
  • $40.99

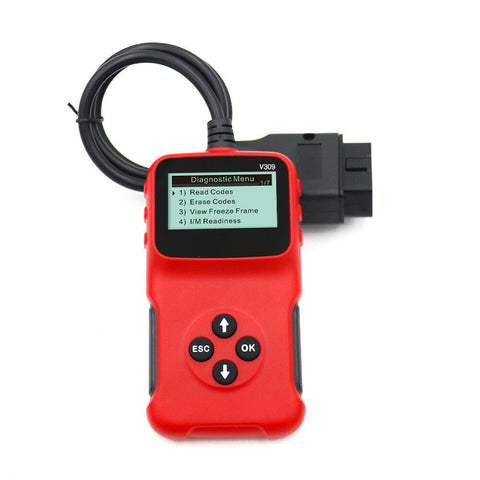

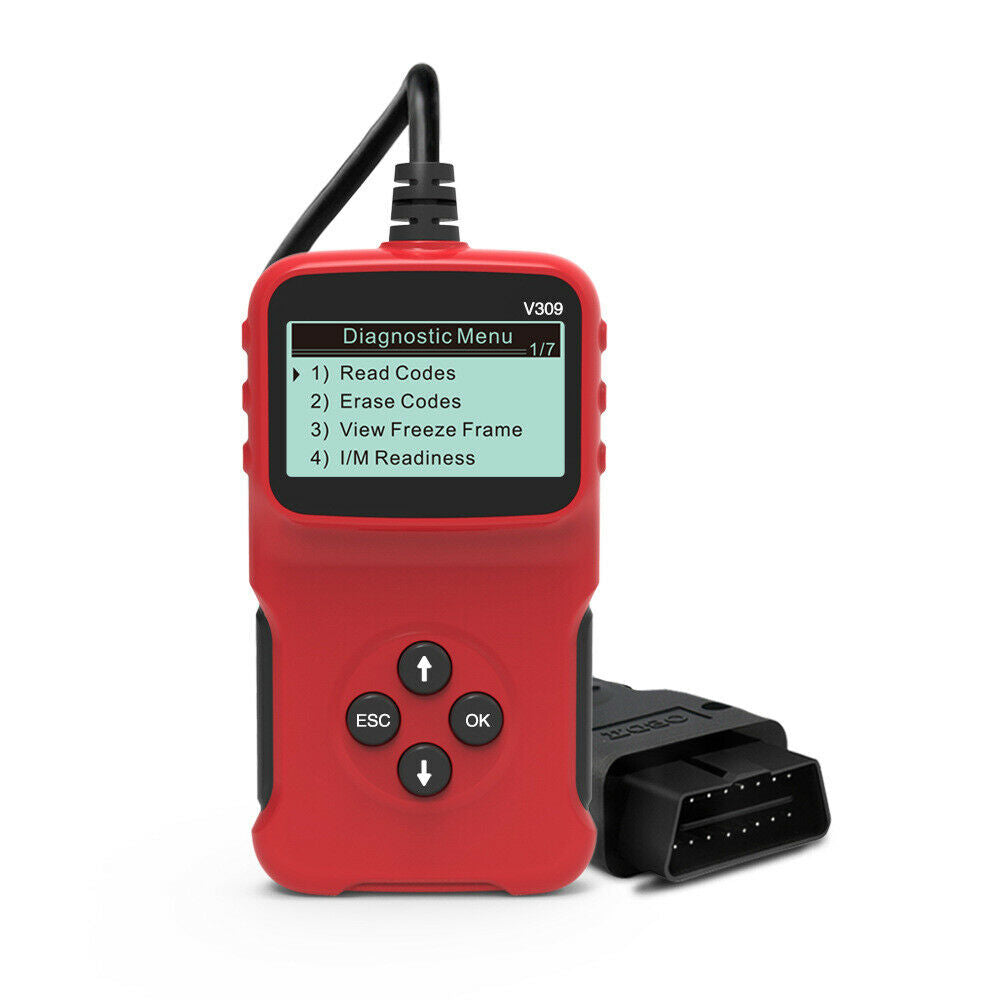

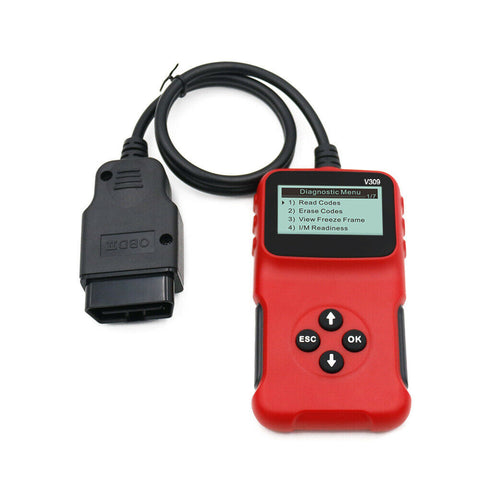

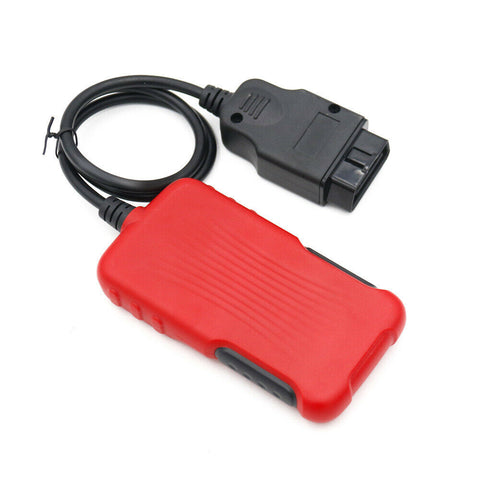

Plug in auto engine code scanner reading tool.


Overview:

Works on most 1996 and newer vehicles, read freeze frame data which shows engine condition.

Features:

1. Read the error diagnosis code-general and manufacturer-specific, and display their meaning (the database has more than 3000 common code definitions)
2. Clear the error code and turn off the MIL ("Check Engine" indicator)
3. Display current sensor data, including:
Engine speed per minute (RPM)
Calculated load value
Coolant temperature
Fuel system status

Speed

Throttle absolute position
With short-term fuel status
Associated oxygen detection voltage
Fuel system status
Fuel pressure
Fuel consumption monitoring
Data graph display and logging
Freeze frame data
Continuous and discontinuous oxygen detection results
1.4. Support 5 languages

Communication protocol:

SAE J1850 PWM(41.6 Kbaud)
SAE J1850 VPM(10.4 Kbaud)
ISO 9141-2 (5 baud init,10.4 Kbaud)
ISO 14230-4 KWP (5 baud init,10.4 Kbaud)
ISO 14230-4 KWP (fast init,10.4 Kbaud)
ISO 14230-4 CAN (11bit ID,500 Kbaud)
ISO 14230-4 CAN (29bit ID,500 Kbaud)
ISO 14230-4 CAN (11bit ID,250 Kbaud)
ISO 14230-4 CAN (29bit ID,250 Kbaud

Specifications:

Model: V309
Working voltage: 9-16v
Working current: 80mA
Operating environment: - 30-70 ° C
Storage temperature: - 30-80 ° C
Package Size: 20 * 13 * 6cm / 7.87 * 5.12 * 2.36in
Package Weight: 200g / 0.44lb



Package included:
1pc x V309 Scan tool
