Flute Style Easy Out Extractor Tool Set

In stock
SKU: STA-32624
Regular price $45.99

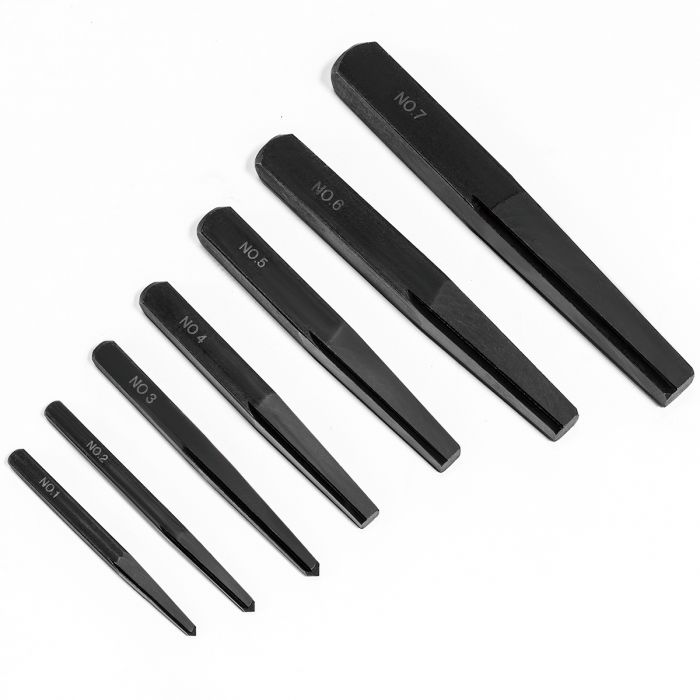

7 pc. Flute Style Easy Out Extractor Tool Set.

Made from rugged, high carbon steel to handle the stress of removing bolts Extractor size and recommended drill bit size are etched on each tool for easy identification Ideal for soft materials or thin-walled pieces such as pipe & fittings Will not expand soft material being removed resulting in easier removal Able to remove left-hand bolts as well as right-hand bolts Method of use: After drilling hole with either right or left-handed drill bit, (left is recommended) insert extractor, turn counter clockwise grips into sides of drill hole and removes broken part without damaging the threaded hole

Features:

  • Features undercut flutes for a more positive grip
  • Permanently laser-marked on the shank of each extractor for easy reference
  • Removes broken studs, set screws, pipe, and grease fittings
  • Heavy-duty construction allows for strength and durability
  • Designed to remove broken studs, set screws, pipes

Specifications:

  • Type: Screw Extractor
  • Material: High Carbon Steel
  • Number of Pieces: 7
  • #1 Removes Screw: 3/16" to 5/16" (Use 9/64" Drill Bit)
  • #2 Removes Screw: 5/16" to 3/8" (Use 3/16" Drill Bit)
  • #3 Removes Screw: up 3/8" to 7/16 & 1/8" Pipe (Use 15/64" Drill Bit)
  • #4 Removes Screw: 1/2" to 9/16" & 1/4" Pipe (Use 5/16" Drill Bit)
  • #5 Removes Screw: 9/16 to 5/8" & 3/8" Pipe (Use 3/8" Drill Bit)
  • #6 Removes Screw: 5/8" to 7/8" & 1/2" Pipe (Use 15/32" Drill Bit)
Specification

Specifications:

  • Type: Screw Extractor
  • Material: High Carbon Steel
  • Number of Pieces: 7
  • #1 Removes Screw: 3/16" to 5/16" (Use 9/64" Drill Bit)
  • #2 Removes Screw: 5/16" to 3/8" (Use 3/16" Drill Bit)
  • #3 Removes Screw: up 3/8" to 7/16 & 1/8" Pipe (Use 15/64" Drill Bit)
  • #4 Removes Screw: 1/2" to 9/16" & 1/4" Pipe (Use 5/16" Drill Bit)
  • #5 Removes Screw: 9/16 to 5/8" & 3/8" Pipe (Use 3/8" Drill Bit)
  • #6 Removes Screw: 5/8" to 7/8" & 1/2" Pipe (Use 15/32" Drill Bit)
  • #7 Removes Screw; 7/8" to 1-1/4" & 3/4" Pipe (Use 5/8" Drill Bit)
