EATON MDL3800WKA0901 3P 800A Molded Case Switch W/ 36" Wire Leads

In stock
SKU: EAT-MDL3800WKA0901
$3,000.00

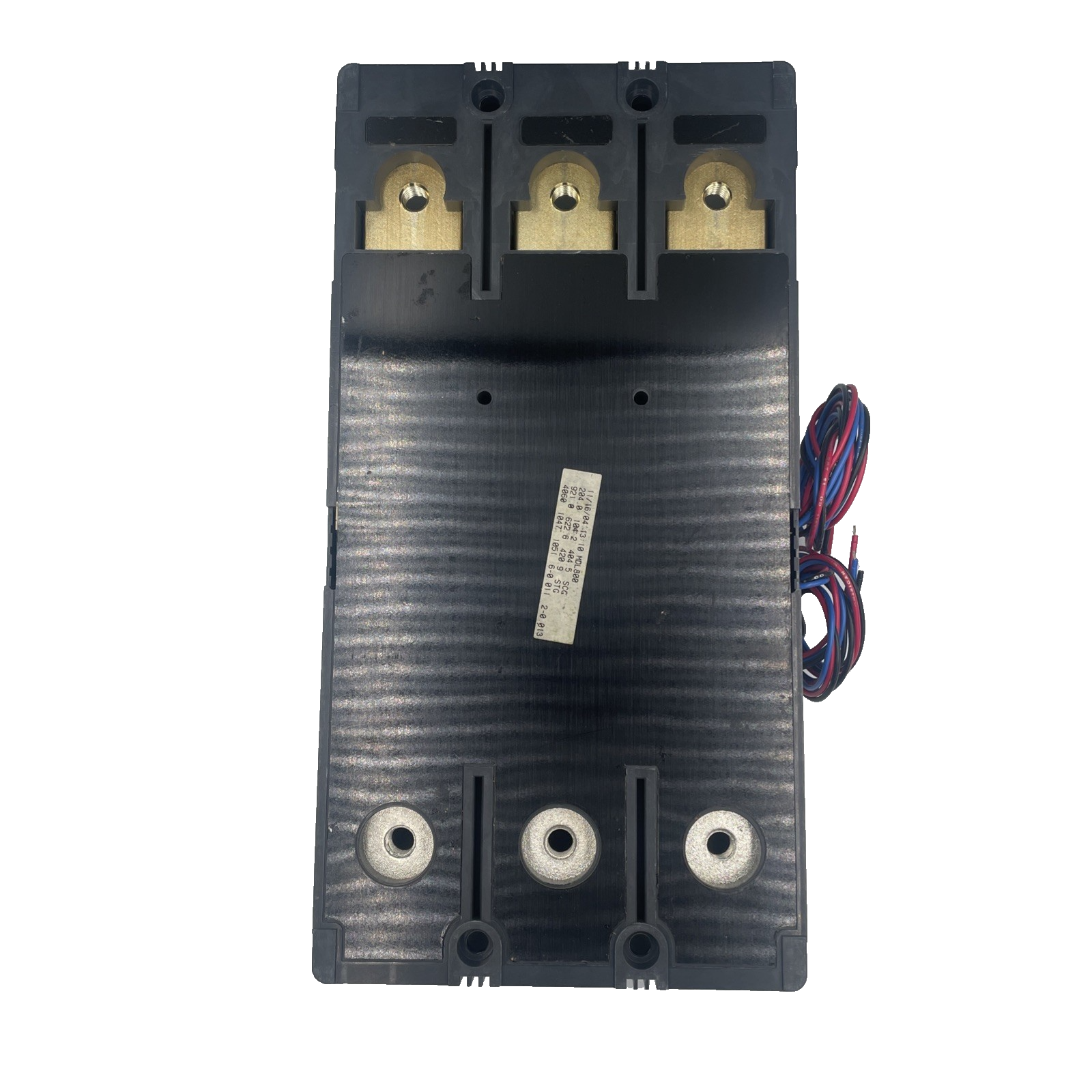

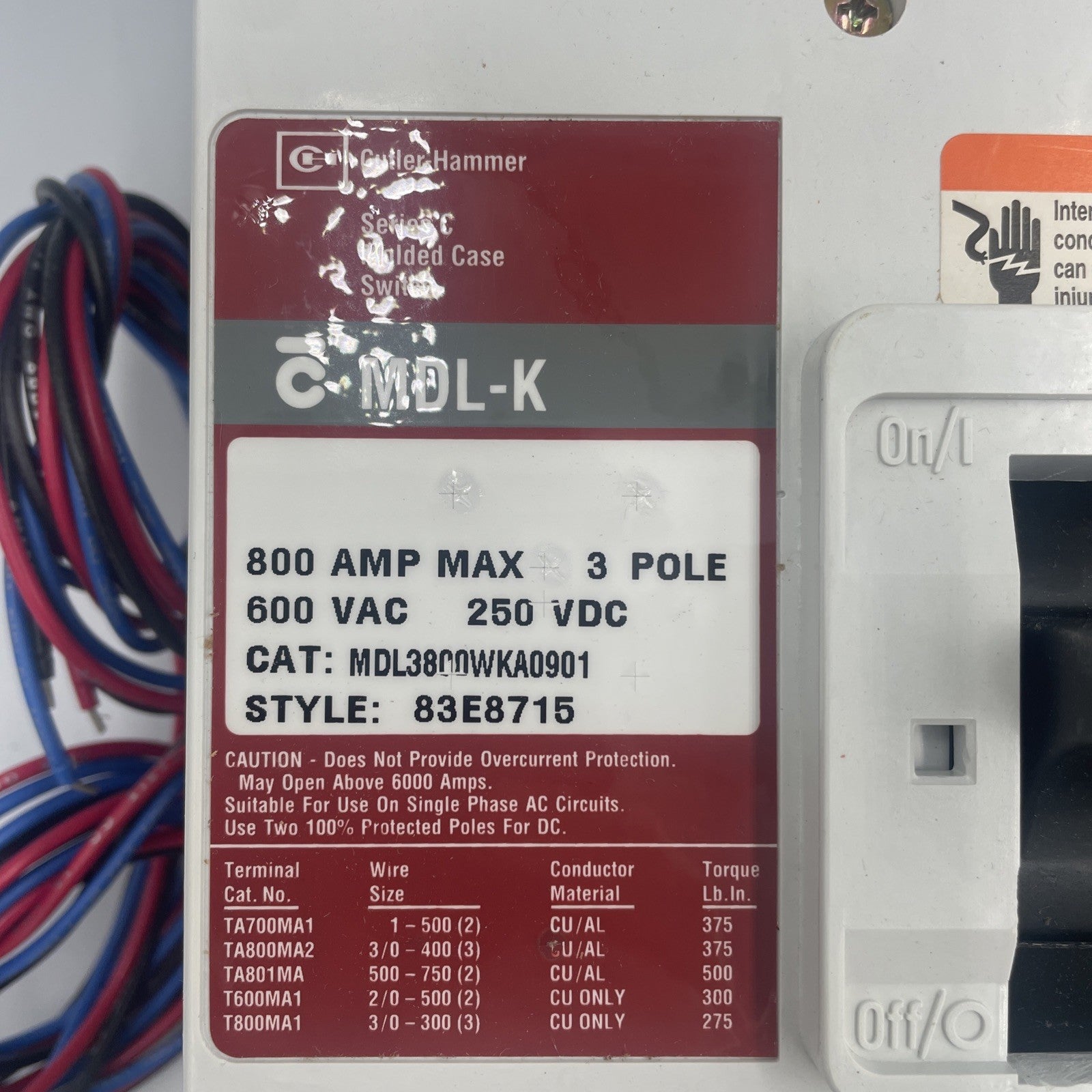

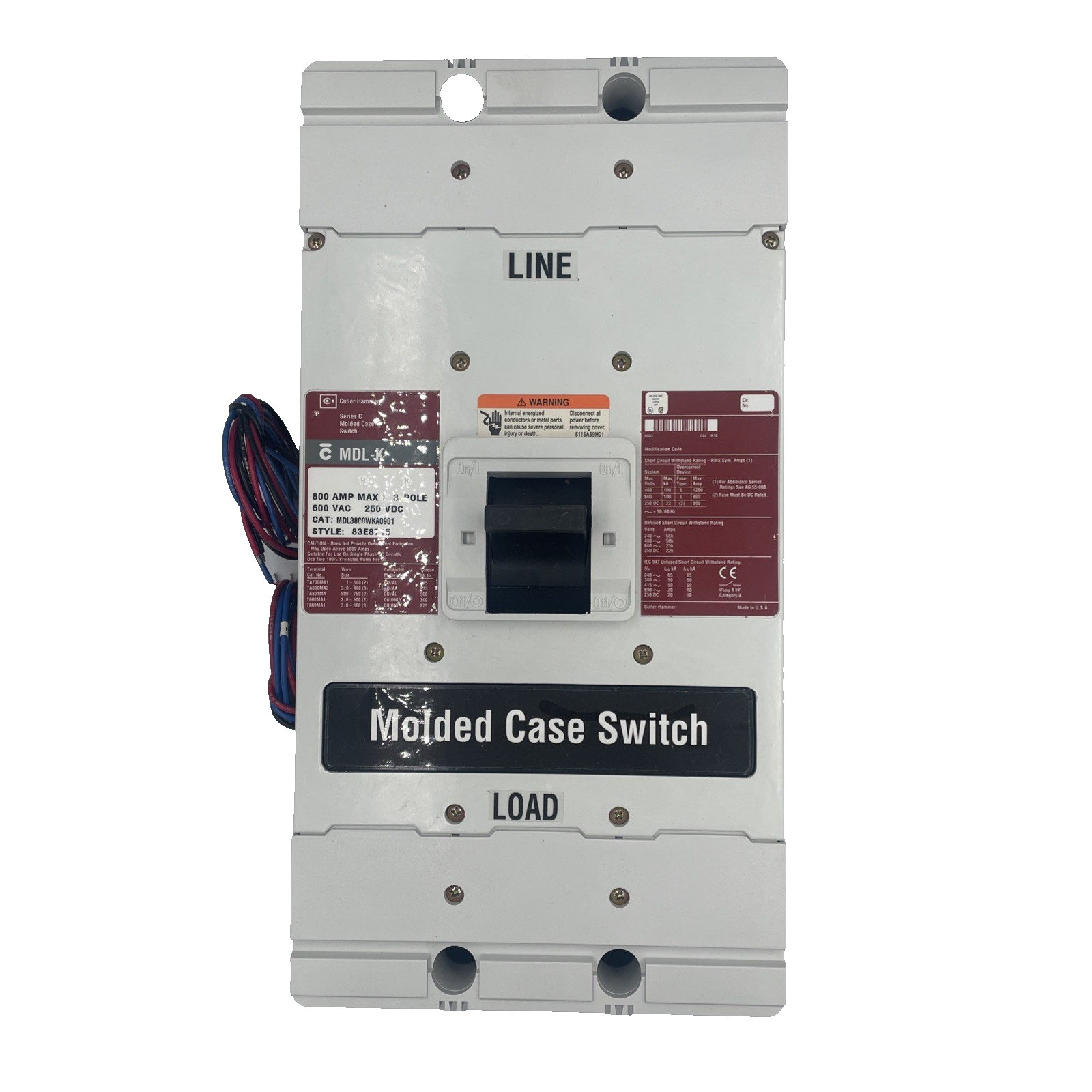

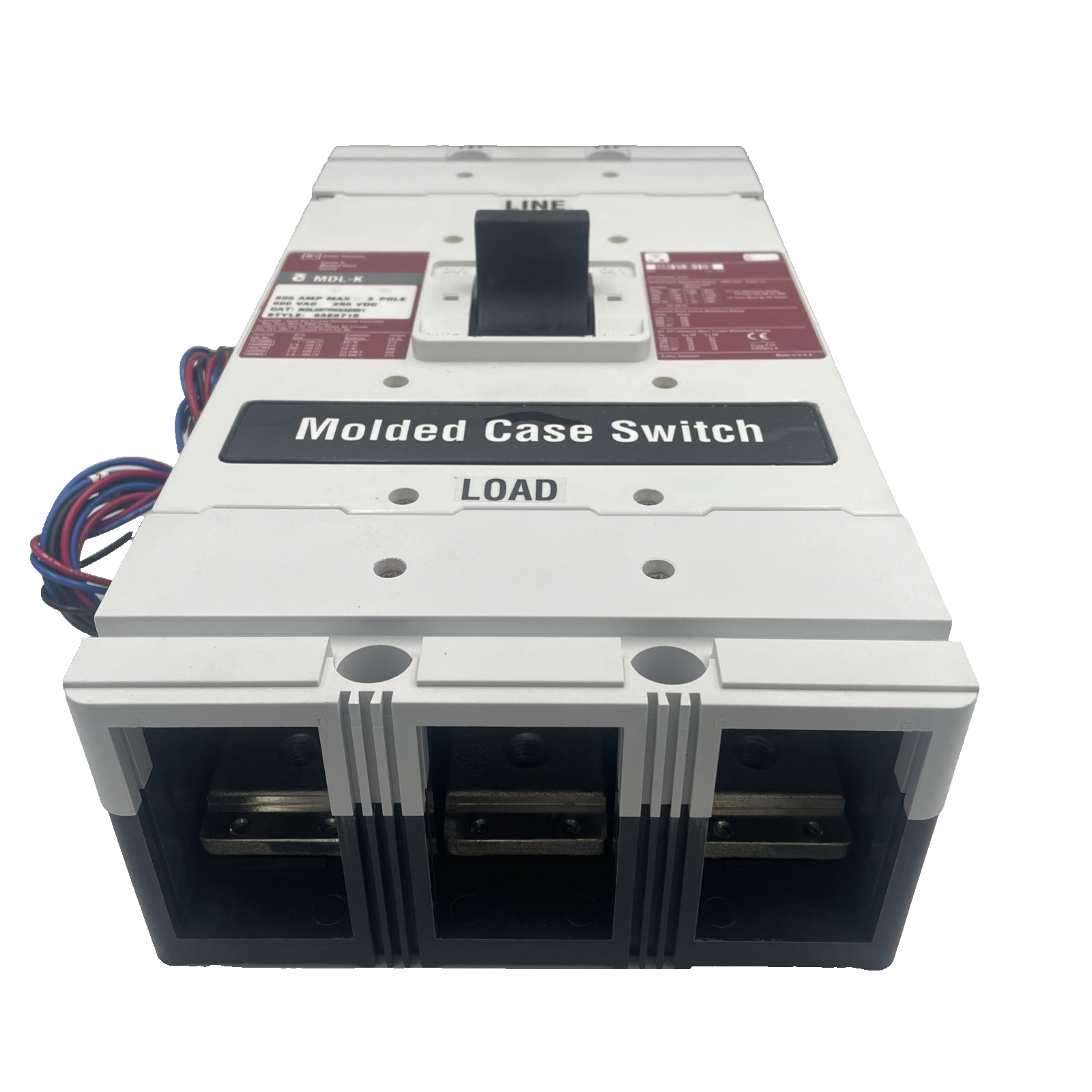

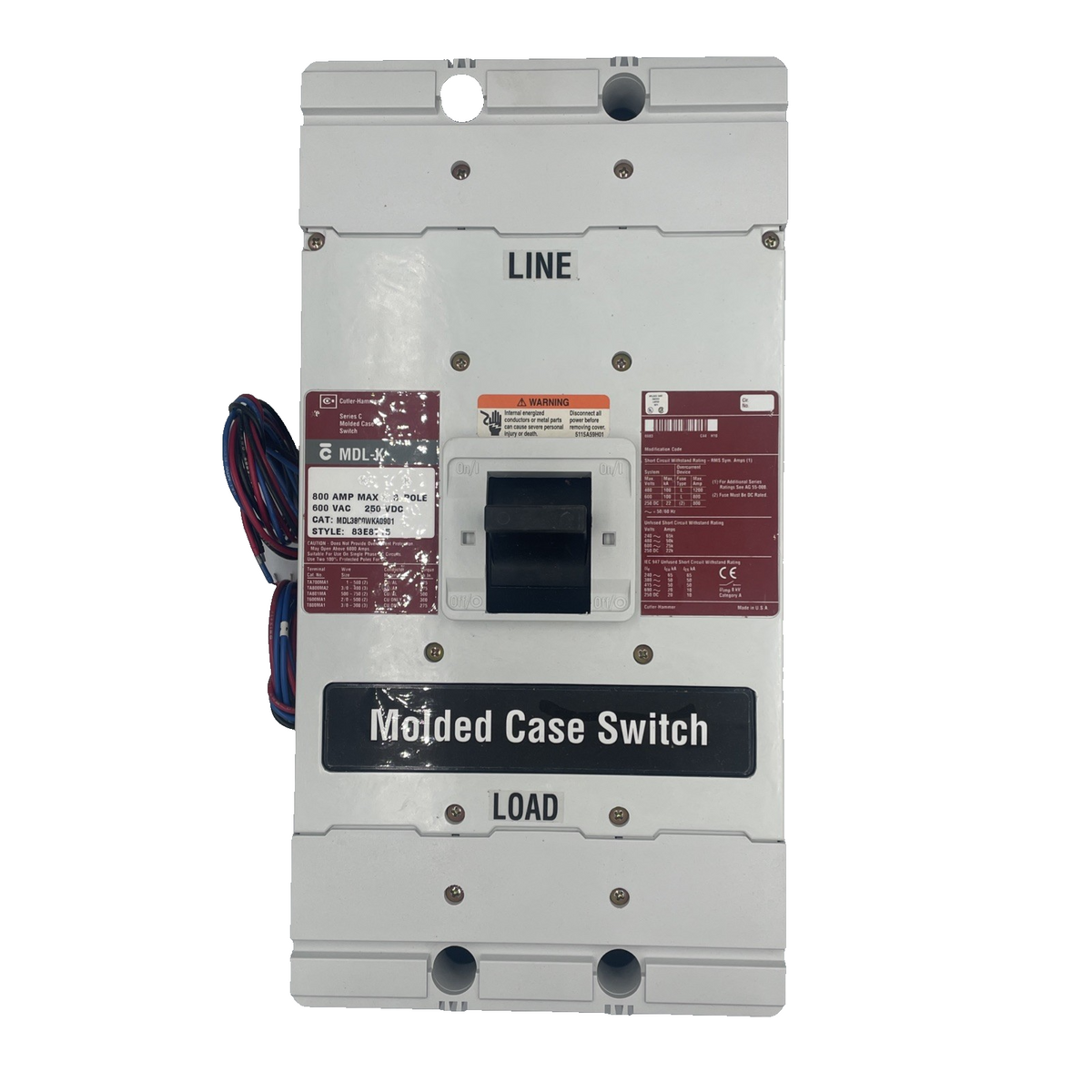

The Eaton MDL3800WKA0901 is an 800-amp, 3-pole molded-case switch with 36-inch wire leads. It is designed for heavy industrial use to safely start, stop, and isolate electrical currents. It can handle up to 600 volts AC or 250 volts DC.

Features  :
  • Amperage : 800A
  • Voltage Rating: 600 VAC (Volts Alternating Current) / 250 VDC (Volts Direct Current)
  • Poles : 3 (meaning it is used for 3-phase commercial power)
  • Design : MDL-Frame Series C

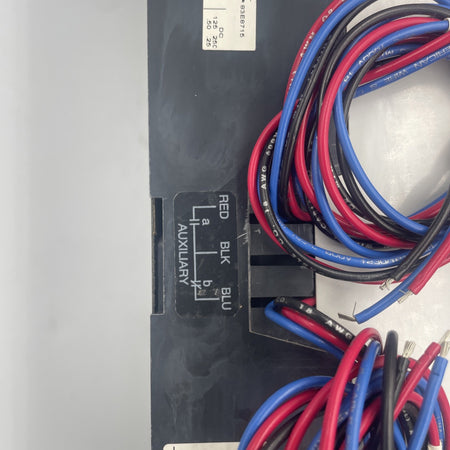

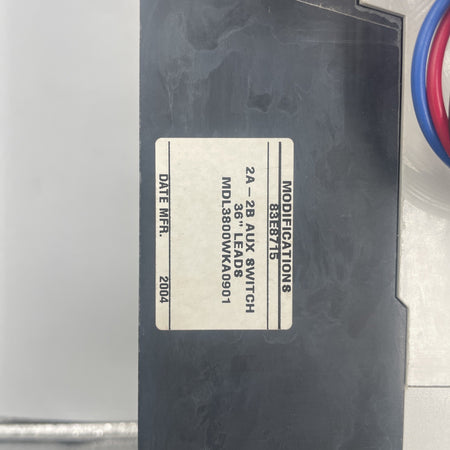

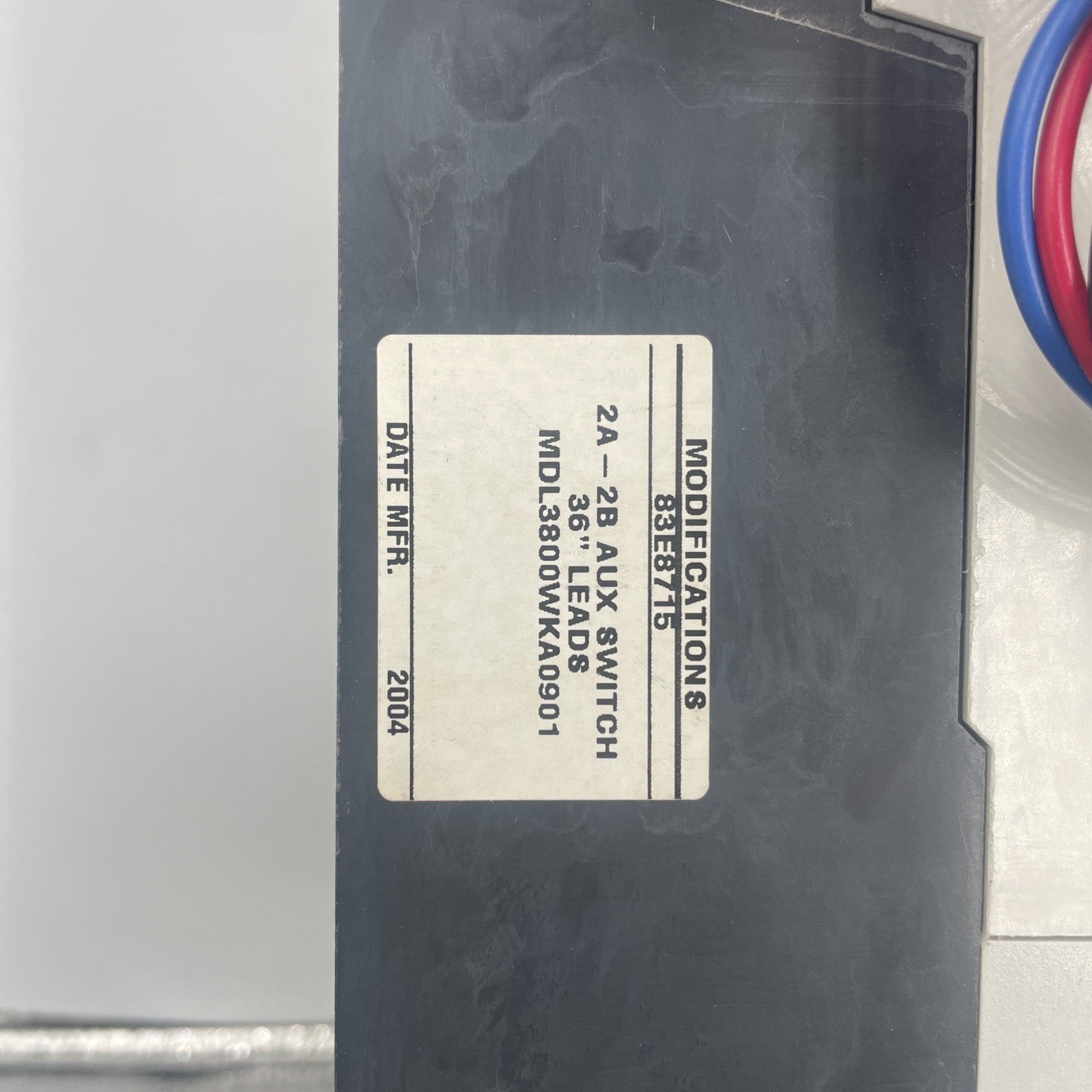

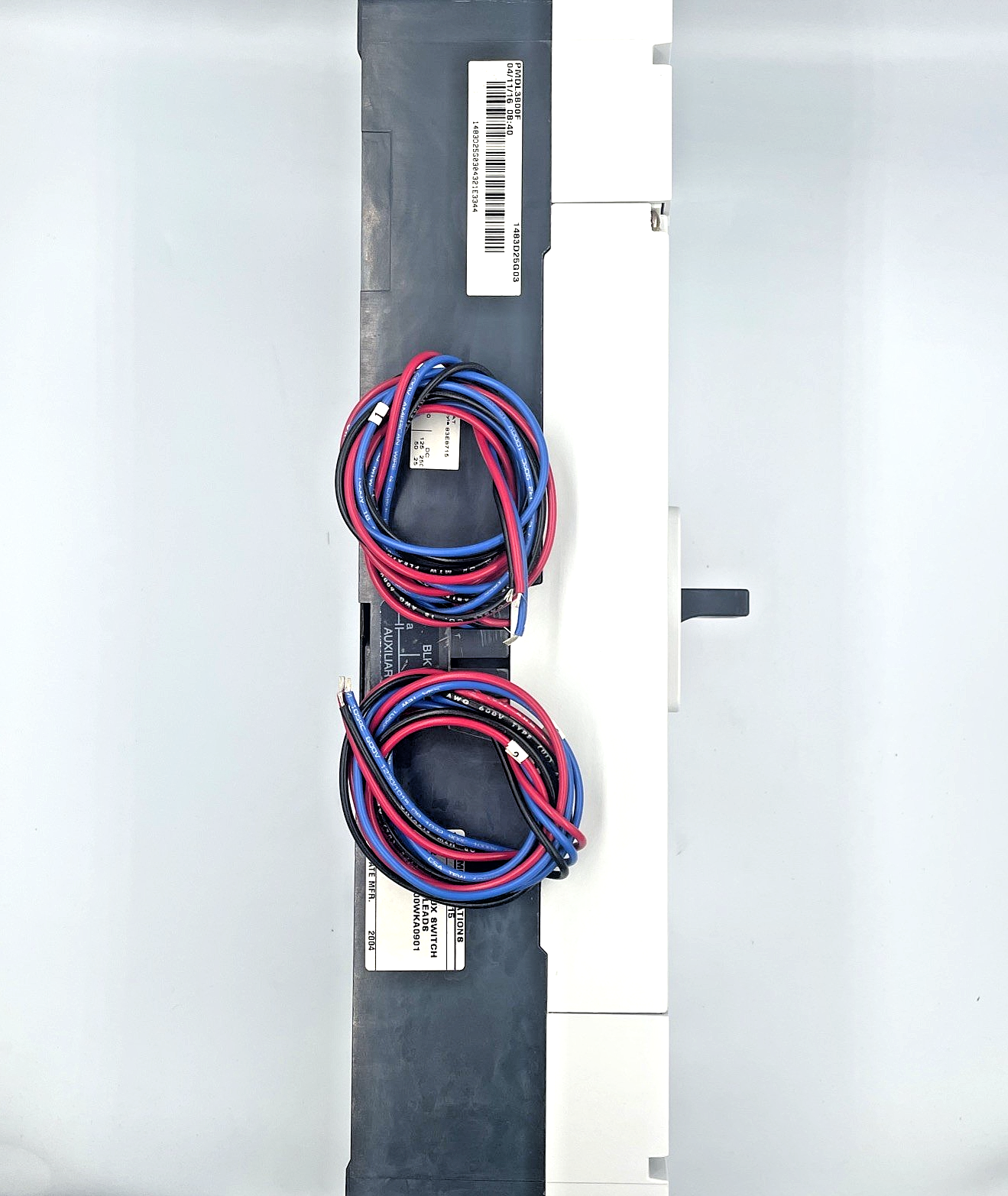

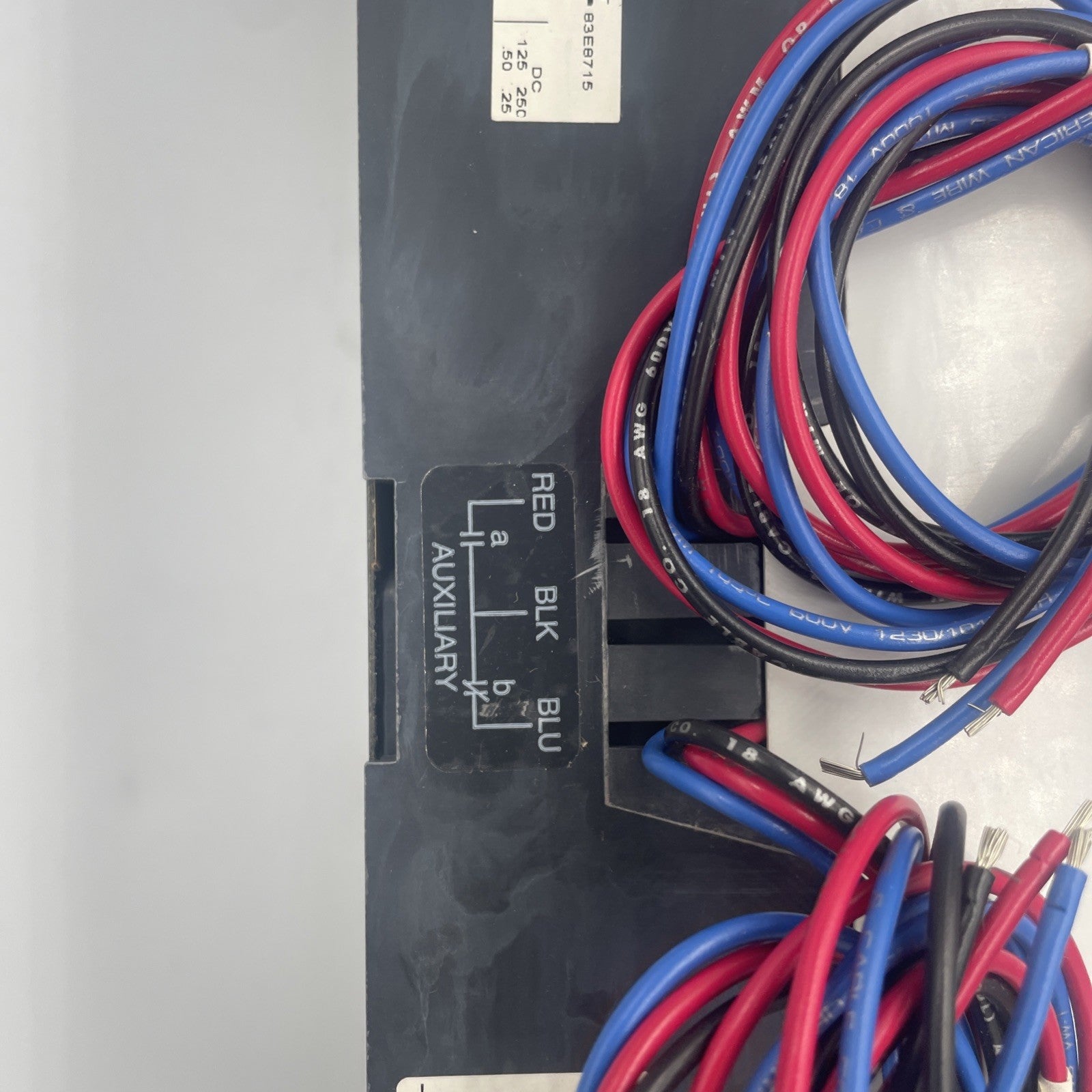

  • Special Feature : Includes 36-inch wire leads for specific control or wiring setups
Specifications :
  • Type : Fixed Thermal Magnetic Molded Case Circuit Breaker
  • Voltage Maximum: 600 VAC 50/60Hz, 250 VDC
  • Number of Poles : 3P
  • Amps : 800A

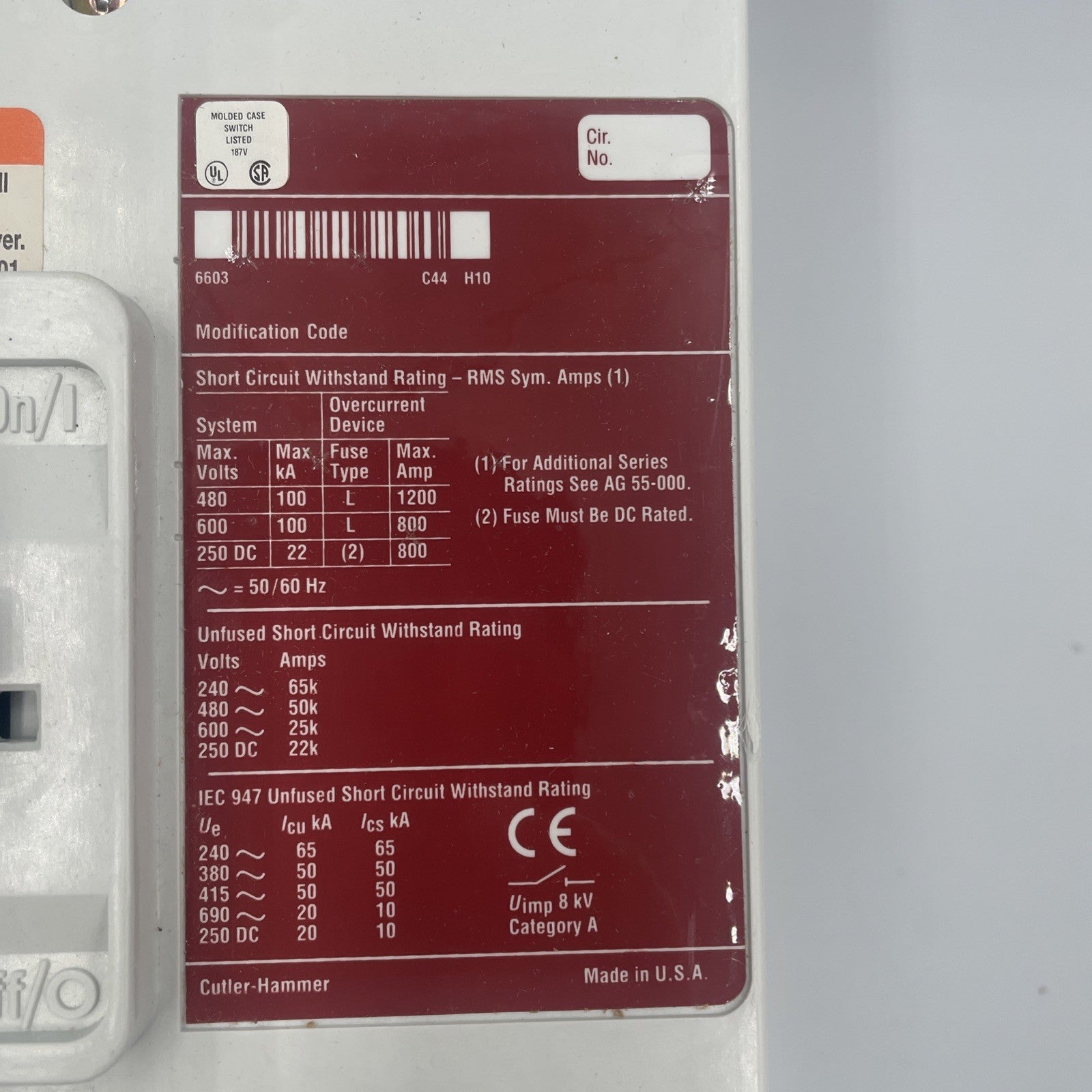

  • kA IR 240V AC : 65 kA IR
  • kA IR 480V AC : 50 kA IR
  • kA IR 600V AC : 25 kA IR
  • KA IR VDC : 22 kA IR at 250 VDC
  • Dimensions WxHxD: 8.25 x 16 x 4.06 in.
  • Frame Type : M-Frame, Type MDL
