70145 Bore Master Door Lock Installation Kit with Carbide Spur Bits

The 70145 Bore Master Door Installation Kit offers everything you need for precise and professional door hardware installation. Featuring an adjustable door boring fixture, this kit accommodates backset positions of 2-3/8” and 2-3/4” and works with wood doors ranging from 1” to 2-3/8” thick. Three carbide-tipped spur bits allow for accurate boring of 1” edge-bore, 2-1/8” cross-bore, and 1-1/2” cross-bore holes for deadbolts. This comprehensive kit also includes two router template kits, designed to create perfect mortises for latch and strike plates. A heavy-duty 1/2” hex drive quick-release drill adapter ensures smooth compatibility with your drill motor, while the 1-1/2” reducer ring provides versatility when using the 1-1/2” spur bit.

An aluminum latch bore strike center marker with a stainless-steel point ensures accurate alignment, while the spring-loaded corner chisel makes quick work of squaring mortise corners for square-cornered hardware. All components are organized in a durable blow-molded storage and carry case, ensuring easy access and long-lasting protection for every tool.

Features:

• The quick, easy, and complete door solution kit every contractor need in their tool arsenal. Includes all the necessary solutions to make door lock installation quick and easy.
• Equipped with an adjustable door boring fixture that will bore doors from 1” to 2-3/8” thickness.
• Contains two complete latch and strike template kits designed to deliver the strike and latch plate mortising for most doors and jambs.
• Includes a center marker and 3 center finders for the most precise and fast markings.

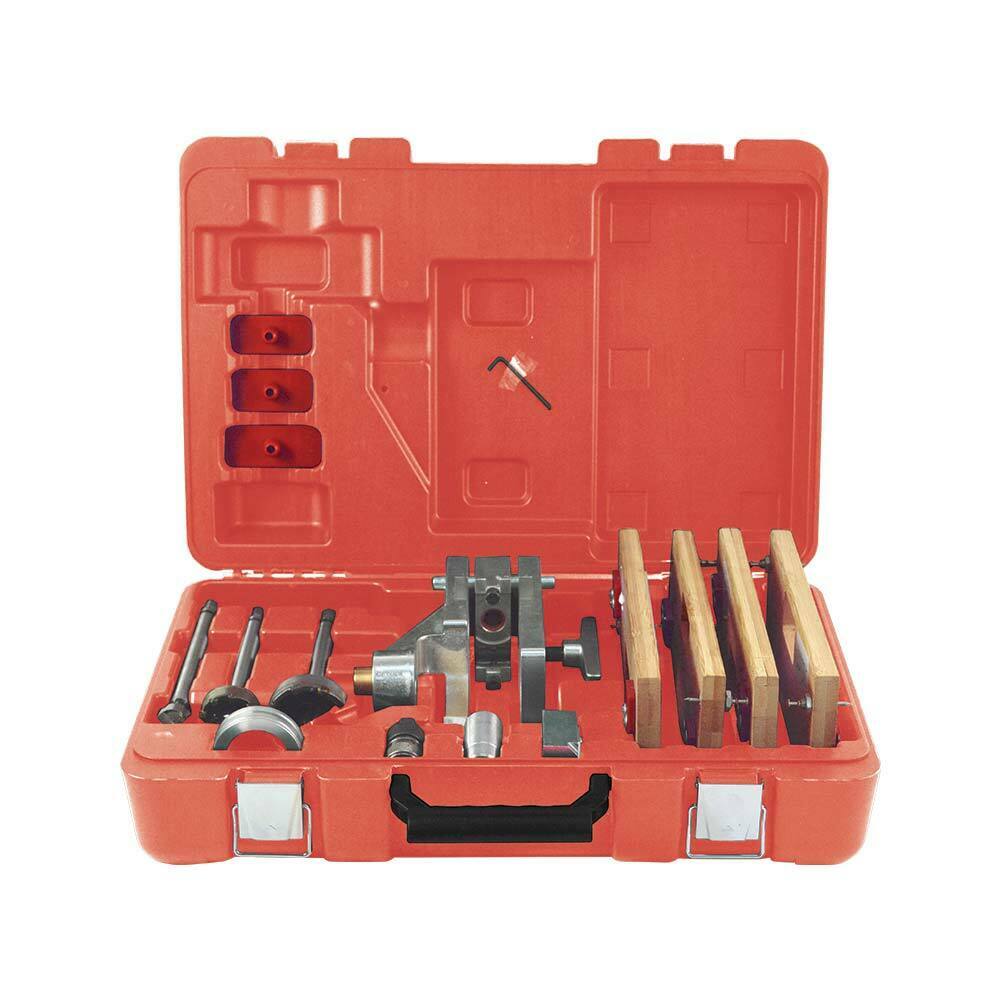

Kit Includes:

• 70130 - Door Boring Jig
• 70151 - 1" Carbide Tipped Spur Bit - 1/2" Shank with 3/8" Hex End
• 70152 - 1-1/2" Carbide Tipped Spur Bit - 1/2" Shank with 3/8" Hex End
• 70153 - 2-1/8" Carbide Tipped Spur Bit - 1/2" Shank with 3/8" Hex End
• 70131 - "A" Latch Template - Finish Size 1-Inch x 2-1/4-Inch
• 70132 - "A" Strike Template - Finish Size 1-Inch x 2-1/4-Inch
• 70133 - "B" Latch Template - Finish Size 1-1/8-Inch x 2-1/4-Inch
• 70134 - "B" Strike Template - Finish Size 1-1/8-Inch x 2-3/4-Inch
• 70135 - Center Locator, 1-Inch x 2-1/4-Inch
• 70136 - Center Locator, 1-1/8-Inch x 2-1/4-Inch
• 70137 - Center Locator, 1-1/8-Inch x 2-3/4-Inch
• 70140 - Reducer Ring, Standard 2-1/8" to 1-1/2"
• 70142 - Center Marker, for 1" Latch Bore with Stainless Steel Point
• 70143 - Quick Release Adapter
• 70154 - 90° Spring Loaded Corner Chisel - Premium Small
• 70147 - Red Blow Molded Carrying Case
