Depth Gauge Ruler Measuring Gage

In stock
SKU: AGT-19209
Regular price $28.99

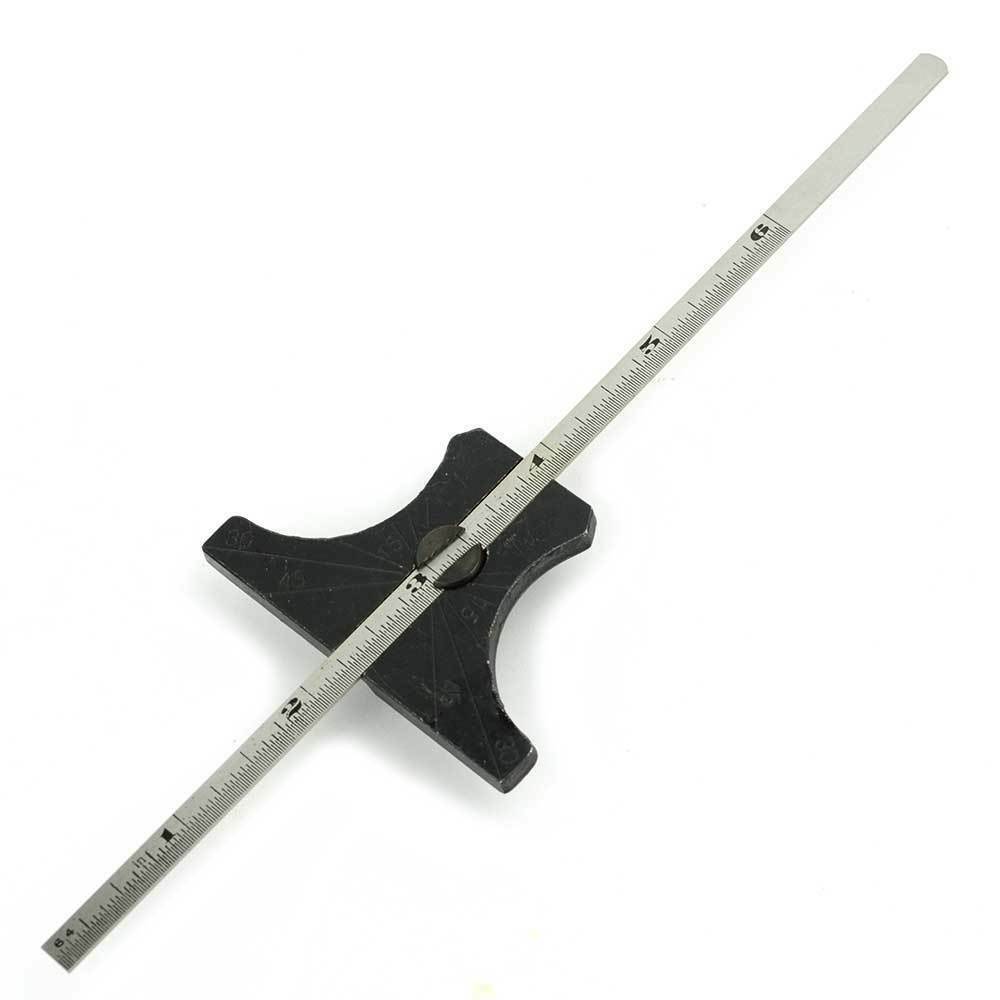

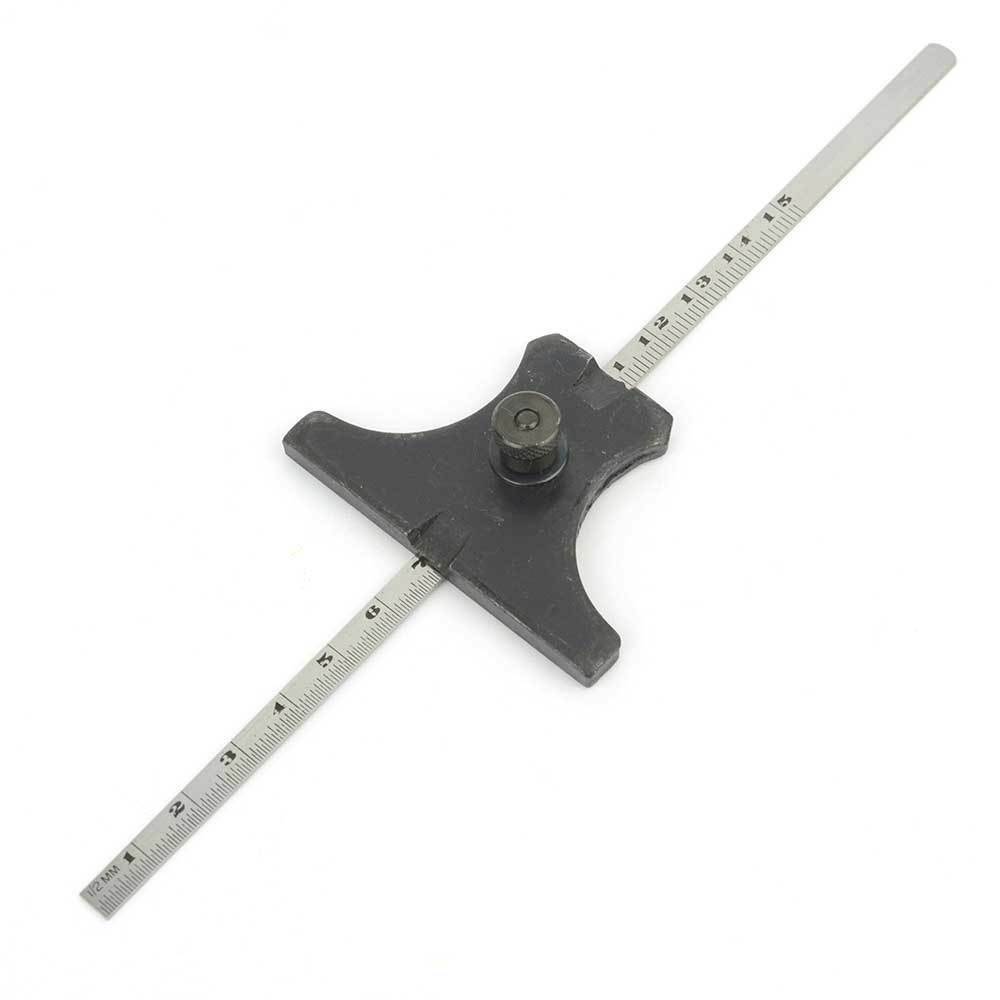

Spring tension knurled nut for easy depth measurement and locking. Fitted with 6 inch/150 mm stainless steel rule graduated 64 on one side and 0.5 mm on reverse. Rule measures 7/32 inch (5.5 mm) wide and .041 inch (1.05 mm) thick. Angular depth gauge can be used as a protractor for measuring angles 15°, 30° and 45° which are marked on the tool.


  • This steel depth gauge is used to quickly obtain measurements of holes or grooves by adjusting the rule to the desired depth
  • This depth gauge consists of a gun metal finished base and a steel rule
  • This gauge can be adjusted to the required measurement and then locked into position by a knurled nut
  • Head is cut out on one side, adjacent to the rule, permitting easier and more precise measurements


  • Length: 6 Inch
  • Dimensions: 1-1/2" x 2-1/4" x 3/16"
