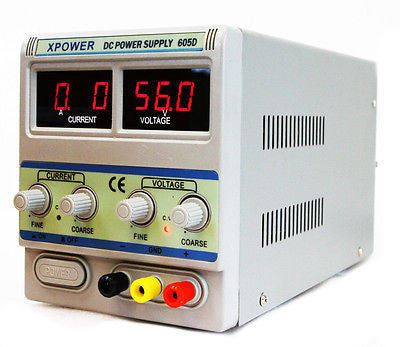

30 Volt 5 Amp AC to DC Digital Transformer

Product Details:

Features:

• Compact Design
• All Metal Construction
• Dual LED Three Digital Tube Display
• Current mA / A Conversion Display
• High Stabilized Output Voltage
• Short Circuit Protection
• Over Loading and Current Protection
• Weight:  roughly 11 lbs

Operating Conditions

• Supply Voltage: AC 110V
• Frequency: 50Hz/60Hz
• Working Temperature: -10°C ~ 40 °C
• Relative Humidity: ‹ 90%
• Storage Conditions: -10°C ~ 40 °C
• Relative Humidity: ‹ 80%

Stable Voltage

• The output voltage is between 0 and nominal value continuously adjustable
• Voltage Stability: ≤0.01% +2mV
• Load Stability: ≤ 0.01% +2mV
• Recovery Time: ≤100µS
• Ripple Noise: ≤1 MVRMS(RMS)
• Temperature Coefficient: ≤ 200PPM/°C

Stable Current

• The output current is between 0 and nominal value continuously adjustable
• Power Stability: 0.1% + 3mA
• Load Stability: 0.2% + 3mA
• Ripple Noise : ≤2mArms(RMS)

Notices:

• AC Input must be 110V.
• Ventilation: Radiator at the rear of the equipment should Not be Blocked out;
• PS Series with temperature control, when the machine temperature ≥ 45°C, the fans will automatically rotate;
• Please don't use it in the environmental temperature exceeds 45°C.

Package Includes:

• 1x DC Power Supply
• 1x Manual

305D
