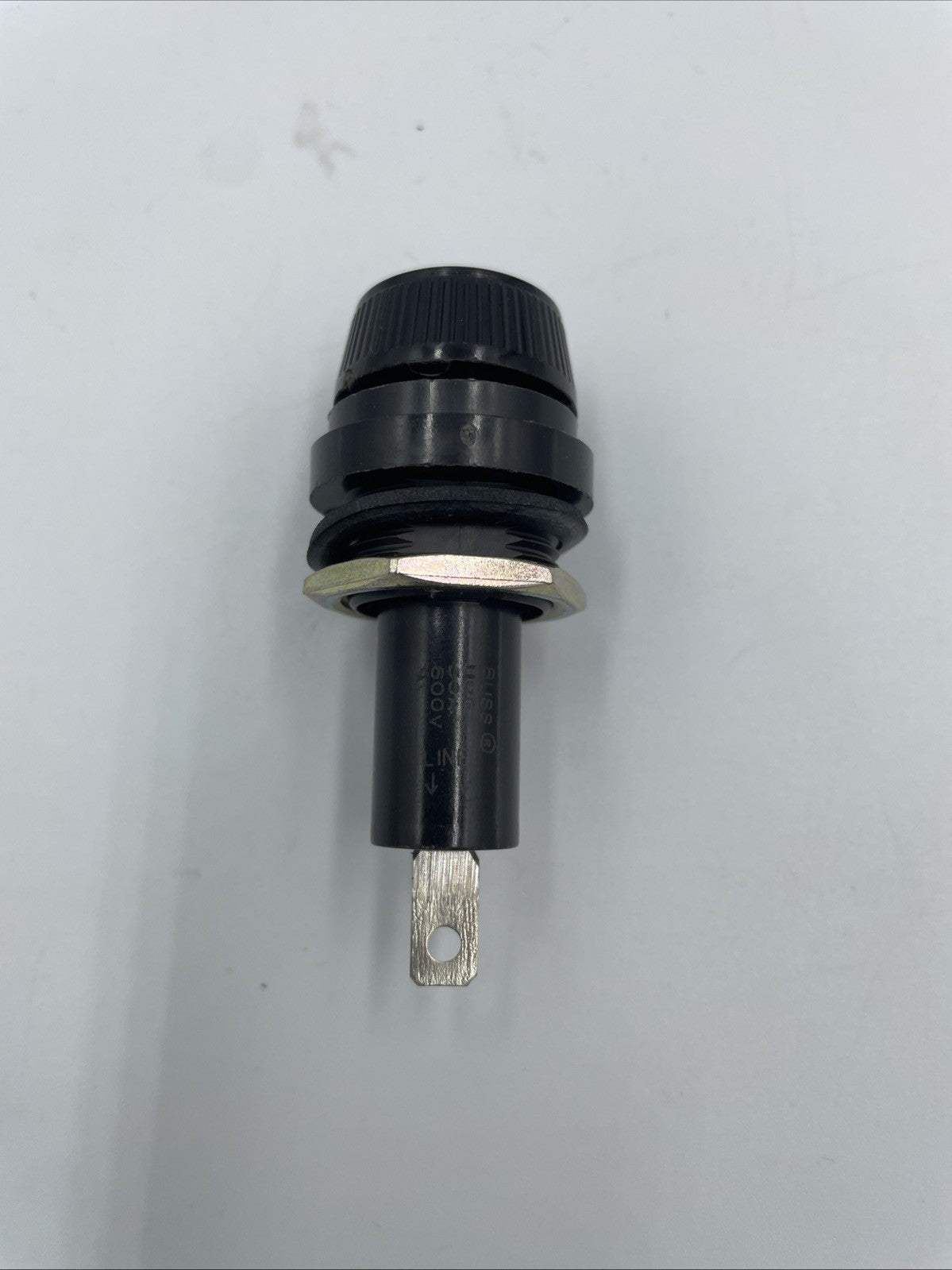

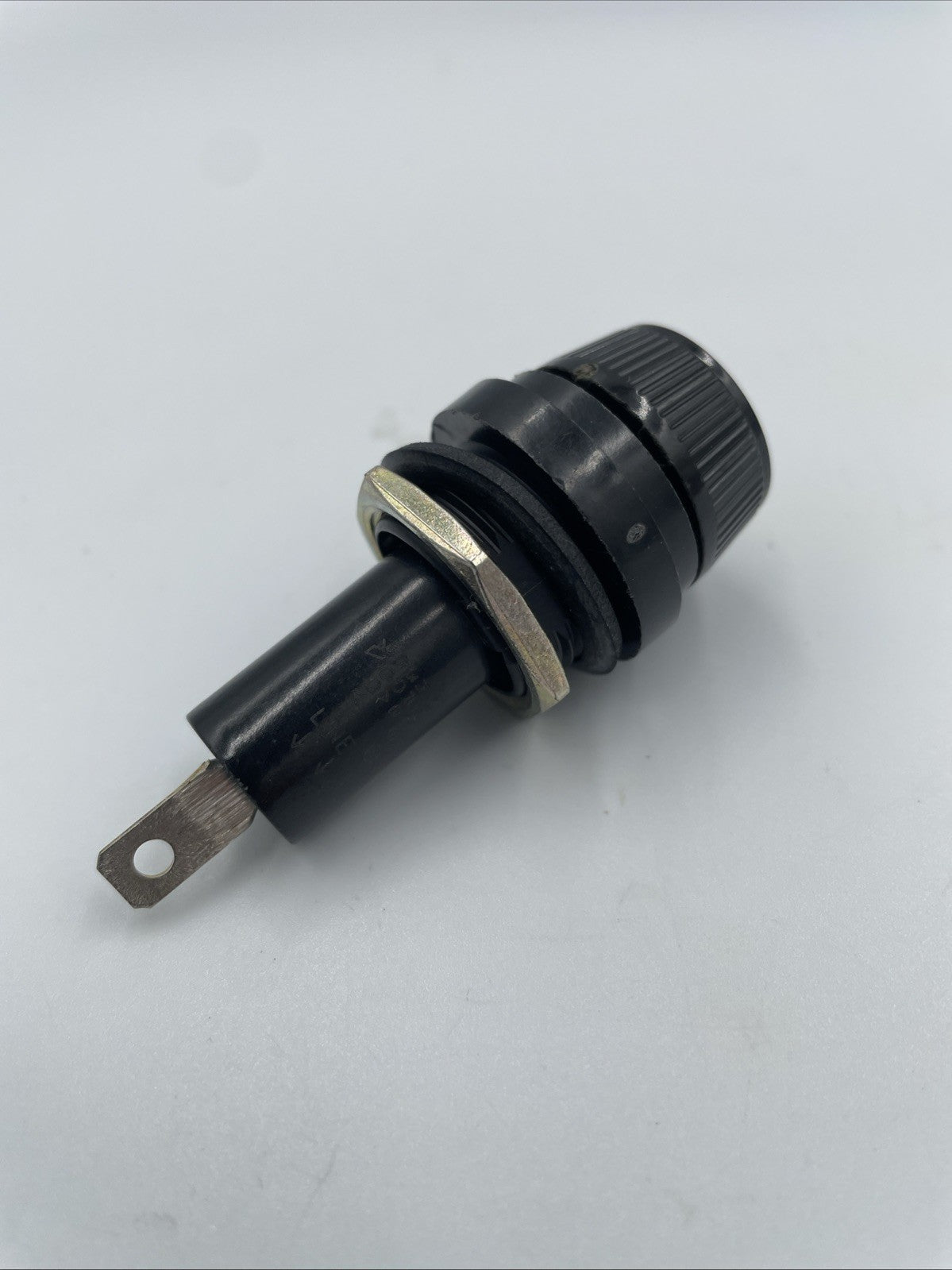

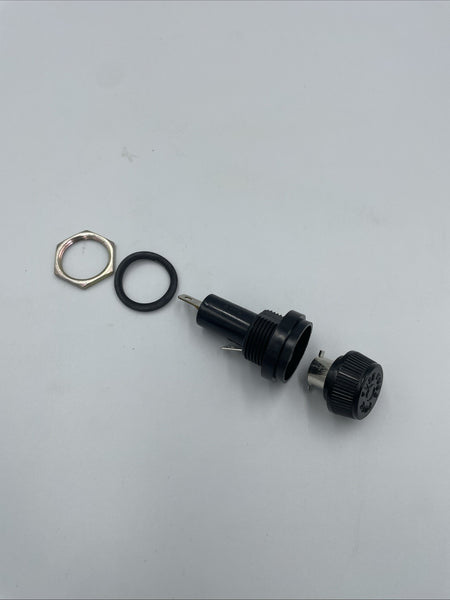

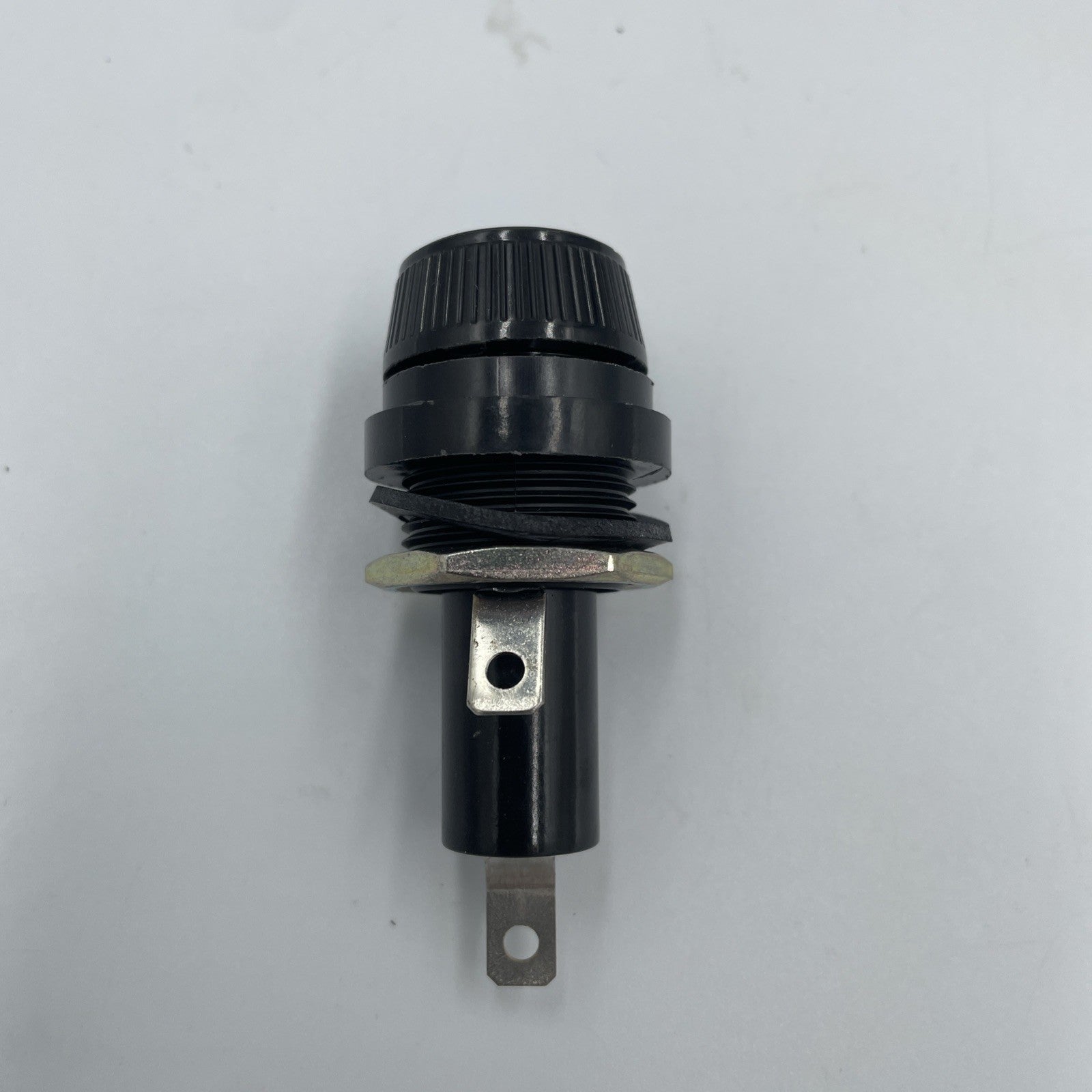

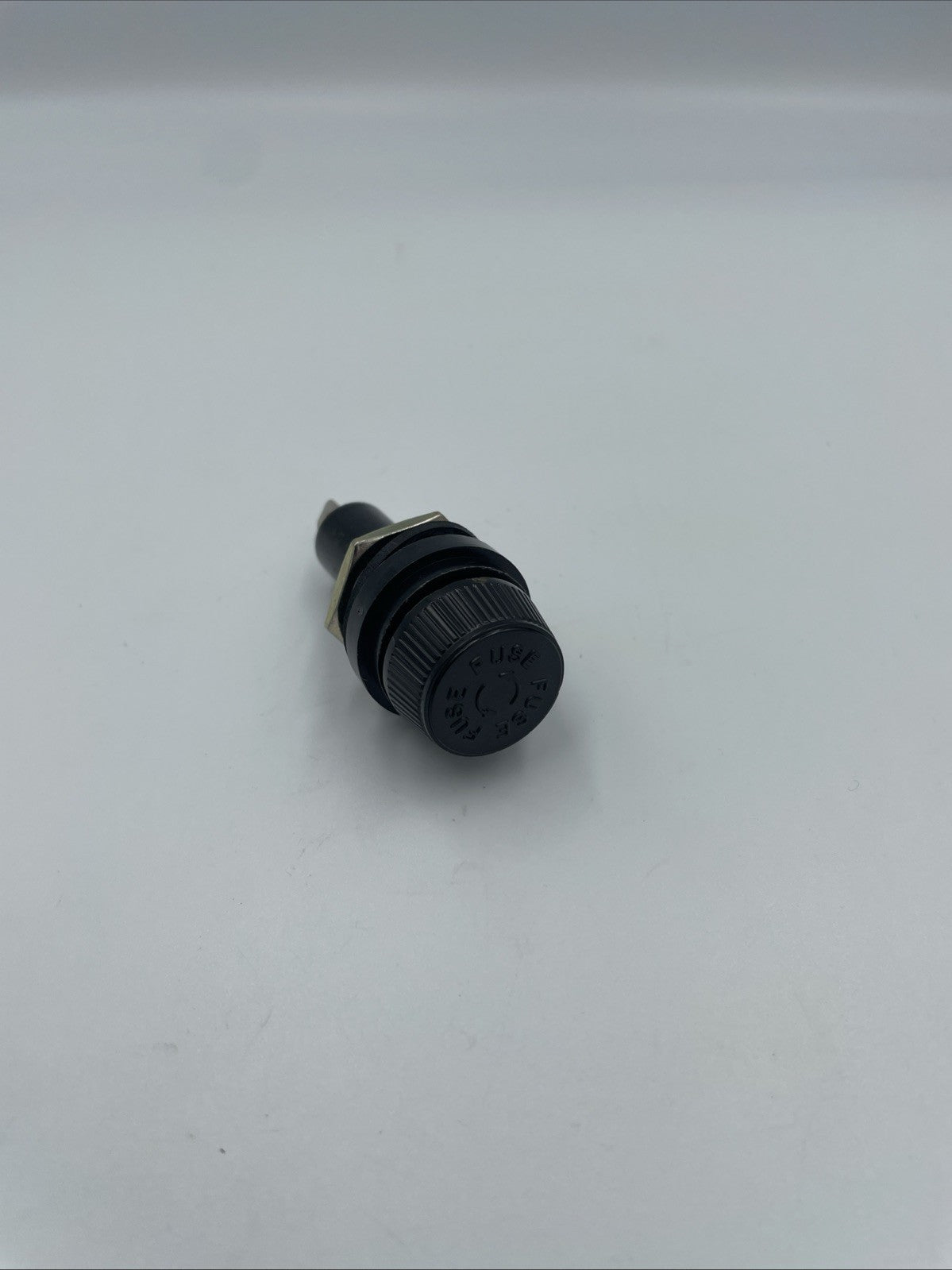

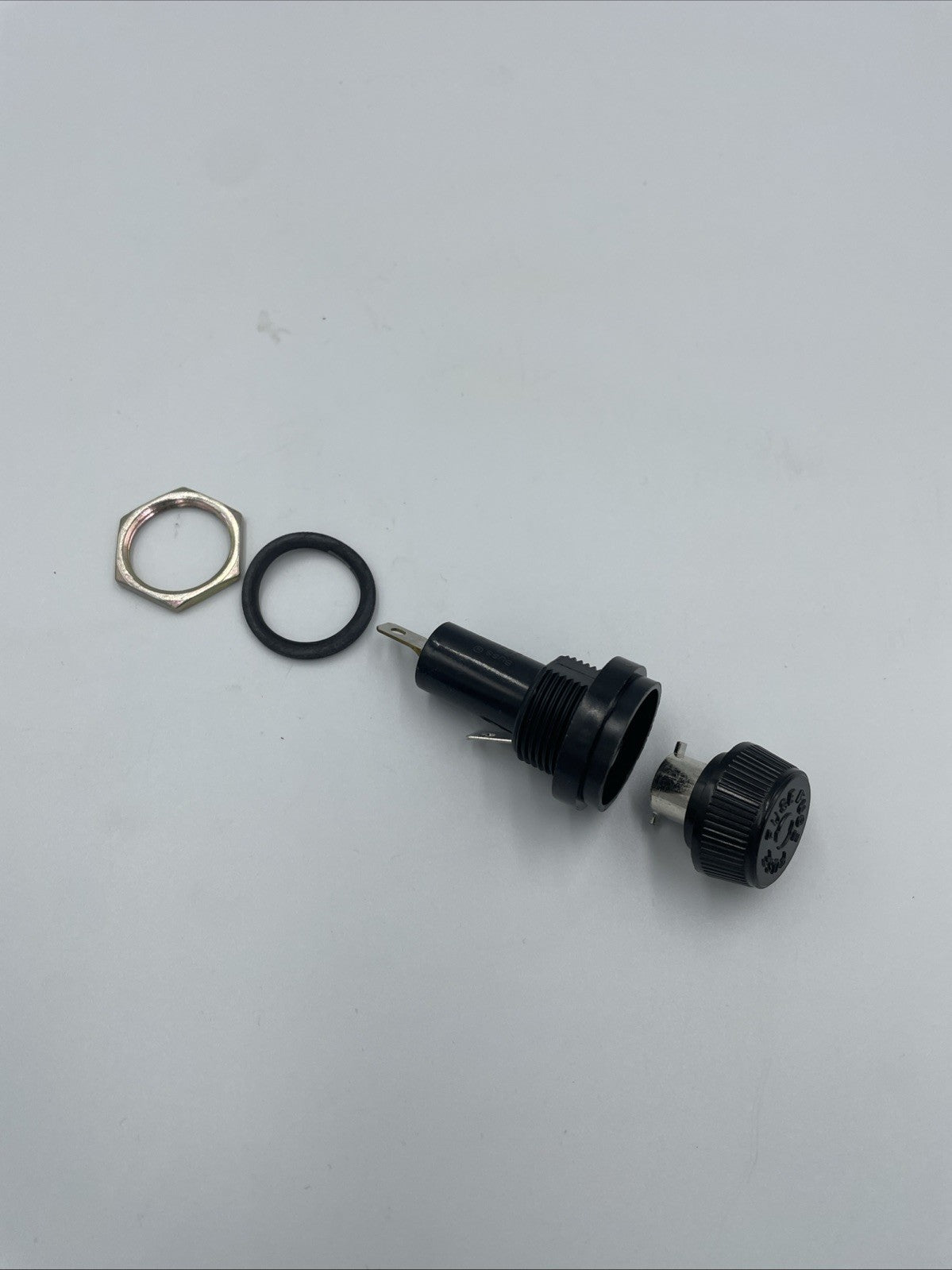

BUSSMANN BK/HPG Fuse Holder 30A 600VAC Panel Mount
Regular price
$34.99
Couldn't load pickup availability
HPG
is an Eaton Bussmann series panel mount fuse holder designed for Class J fuses with a 30A rating and 600V voltage capacity. This panel mount fuse holder supports a maximum current of 20A continuous, features a 1/4 inch quick connect/solder terminal connection, and is suitable for supplementary protection applications. It is UL Recognized providing reliable and safe circuit protection.
Key Specifications
- Manufacturer: Cooper Bussmann
- Part Number: HPG
- Current Rating: 30A (20A max continuous)
- Voltage Rating: 600V
- Fuse Class: Class J
- Mounting Type: Panel mount
- Connection Type: 1/4 inch quick connect/solder terminal
- Number of Poles: 1
- Certifications: UL Recognized
- Fuse Size: 10.3 mm x 38 mm
- Dimensions: 0.99 in x 2.35 in x 0.99 in (Length/Depth x Height x Width)
