Air Hose Barb Crimping Crimper Repair Tool Kit

  • Sale
  • $79.99

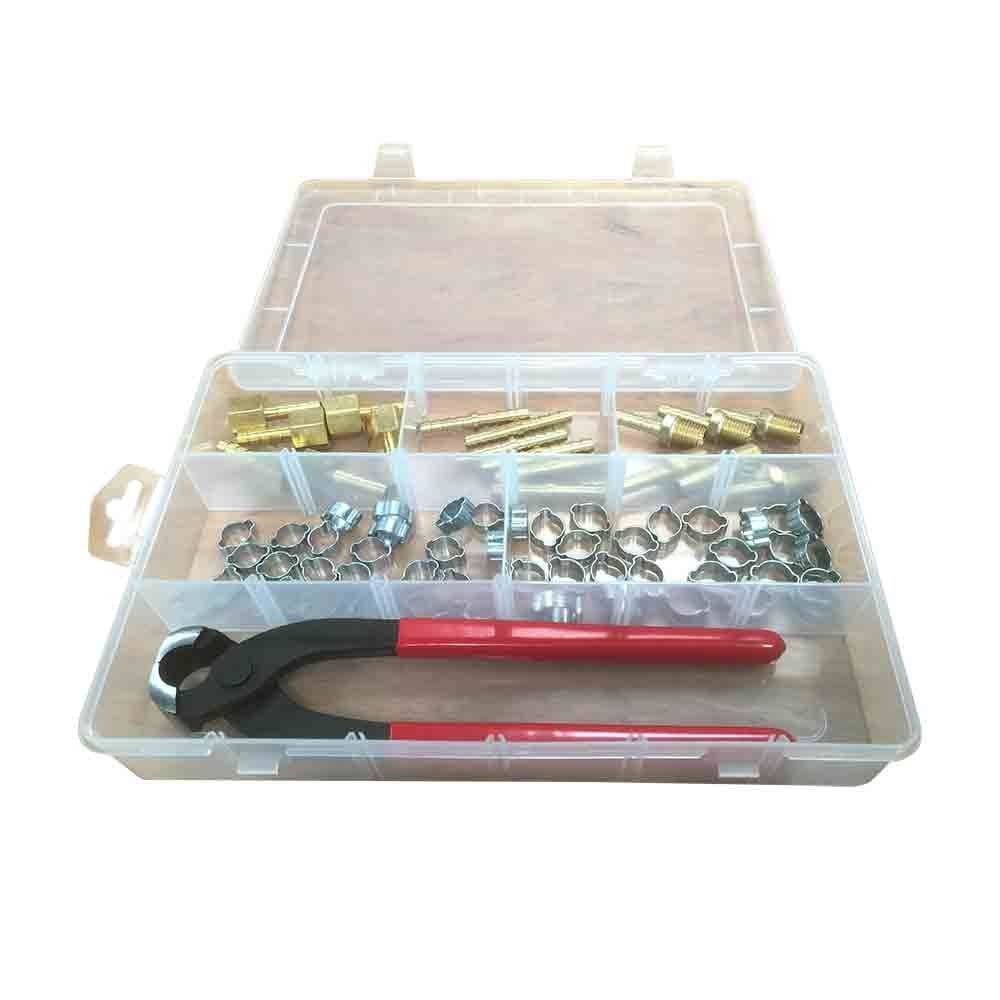

This Air Hose Repair Kit comes with everything you need to make professional quality air hose repairs fast and easy. This "Double Ear" Kit comes with H611 and H613 Clamps (25 pieces each), H11 Pincher/Crimper, FM44 1/4" Hose Barbs (6 pieces), FBS44 1/4" Hose Splicer Barbs (6), FF44 1/4" Female Hose Barbs(6).

Double ears hose clamp is a one piece design and is suitable for applications where more secure clamping is needed than what a one-ear clamp provides. The double ears of this clamp have nearly double the clamping force of one-ear clamps and apply the force more uniformly for reduced thermal and vibrational expansion. This double-ear hose clamp is suitable for attaching hoses to fittings or other devices in a variety of industrial applications, such as heavy machinery, hydraulics, irrigation, food processing, automobile manufacturing, and petroleum industries, among others. Fast simple secure and permanent installation.

Straight jaw pincers are made of forged steel and are suitable for the installation or removal of ear-type clamps that secure pneumatic or hydraulic industrial hose fittings. Its jaws clamp each side of the ferrule, compressing the hose against the barbed portion of the hose fitting for a secure fit. It is made of forged steel for strength and durability, and has rubber-coated handles for sure hold. These straight-jaw pincers are suitable for industrial or commercial hose fitting repair and installation applications where space is limited.

Interstate Pneumatics Brass Hose Barb Fitting is machined barb from a solid brass stock using CNC machine center. This brass fitting has thicker walls and long length; this product can be used with PVC, PU, Rubber hose or tubing and to be secured with a hose clamp or crimped ferrule.

Features (H611 & H613):

  • Double ear clamp
  • Application: Air & liquid lines
  • Deburred esges prevents damage to clamped parts

Specifications (H613):

  • Range: 11 to 13 mm Outer Diameter
  • Material: Steel with Zinc Plating
  • Width: 7 mm

Specifications (H611):

  • Range: 9 to 11 mm Outer Diameter
  • Material: Steel with Zinc Plating
  • Width: 7 mm

Features :

  • Straight-jaw pincers for use with ear-type clamps in hose fitting installation and removal
  • Tool acts at 90-degree angle to ear clamp for use where space is limited
  • Clamps or cuts ear clamps that secure hose fittings
  • Forged steel construction for strength and durability
  • Rubber-coated handles for ease of use and sure hold

Specifications:

  • Threads(FM44): 1/4" Barb X 1/4" NPT Male End - Machined (Provides seal tight threads)
  • Threads(FBS44): 1/4" Barb - Machined (Provides seal tight threads)
  • Threads(FF44): 1/4" Barb x 1/4" Female NPT End - Machined (Provides seal tight threads)
  • Temperature Range: -65 ° F to 250 ° F
  • Max Operating Pressure: 1000 PSI
  • Conformance: ASME, SAE, NPT
  • Material: Brass - Excellent strength & ductility, corrosion resistance, good bearing properties, low magnetic permeability
